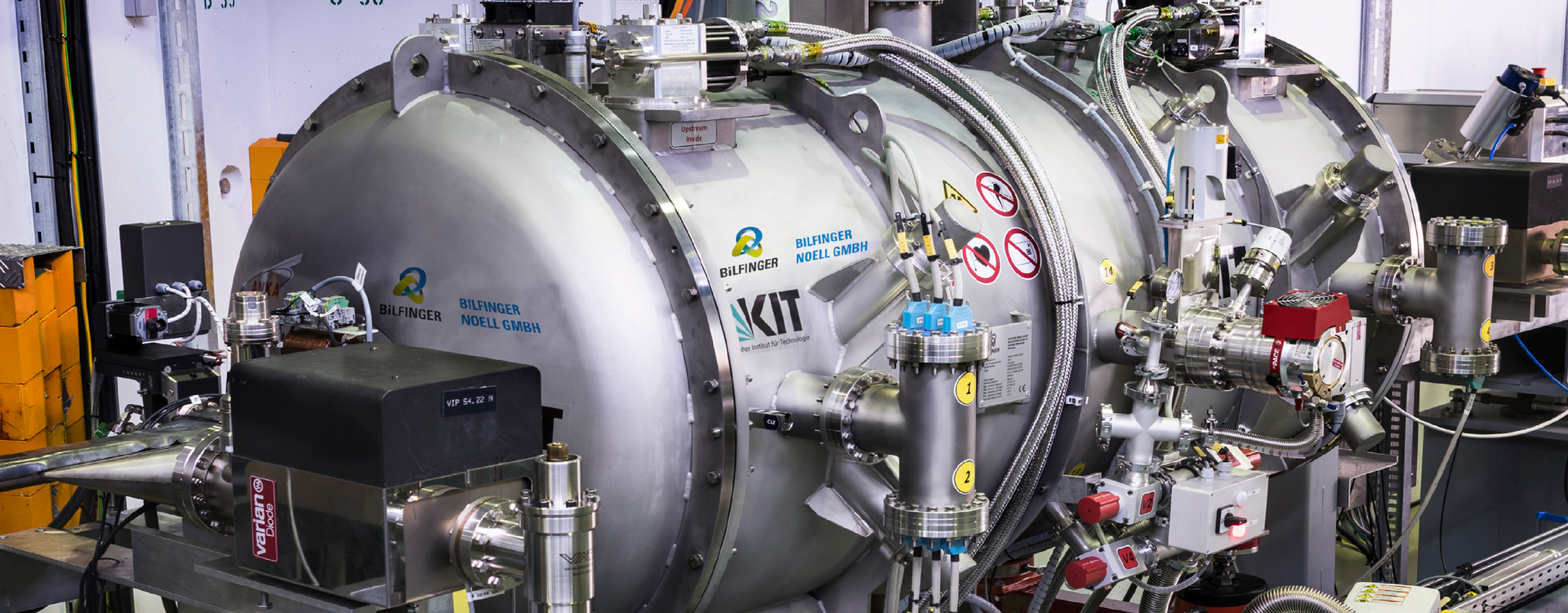

Superconducting Undulators (SCU)
Overview
Superconducting undulators define the new standard for insertion devices. The use of superconductivity allows higher flux and wider photon energy range compared to any permanent magnet based device. This solution enables existing and new facilities to reach higher performance and broader tunability ranges.
How it works
The KIT-BILFINGER SCUs exploit superconductivity to increase the strength of the alternating magnetic field on beam axis. They operate at cryogenic temperatures, but do not require liquid helium, as they are fully conduction cooled. The flexible UHV beam pipe gives the possibility to open the gap in cold conditions (when the coils are not powered), allowing for increased safety. Beam transparency is assured by the use of integrated corrector coils.
Features

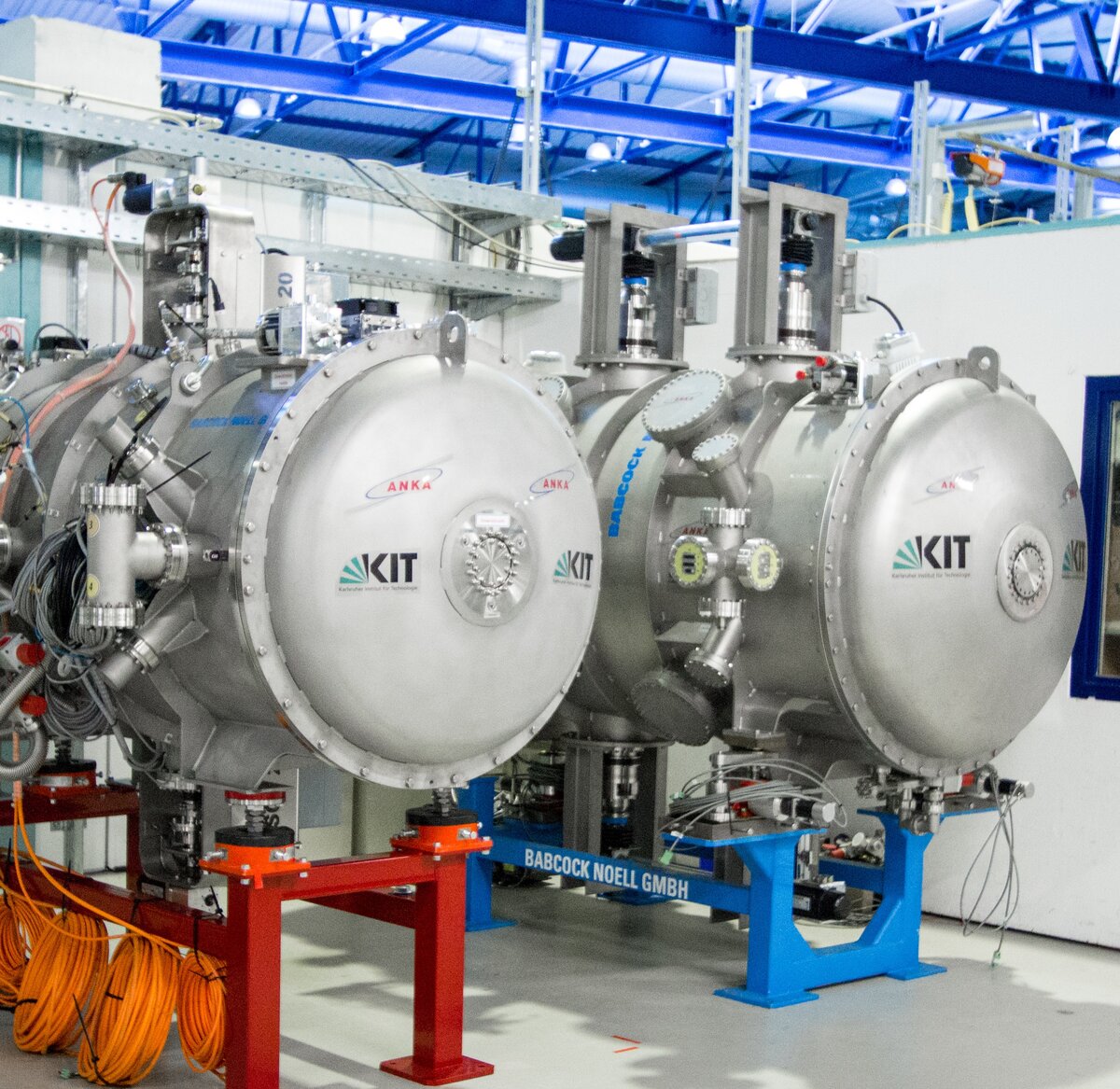

- RELIABLE: our SCUs demonstrated long term operation in the KIT ring and serve as source for user beamlines
- BRILLIANT: In terms of peak field, SCUs outperform devices with competing technologies
- PLUG´n PLAY: No liquid helium required
- OUTSTANDING UHV: No impact of the cold bore on beam operation
- COMMERCIALLY AVAILABLE: KIT and Bilfinger Noell can tailor each device to customer needs
Detailed specification
- Period length ............................................. 15 - 20 mm
- Max field on axis 7 mm vacuum gap.......... 0.8 - 1.2 T
- Nominal current ......................................... 150 - 400 A
- Ramp to nominal current ............................< 300 s
- Operating vacuum gap ................................7 mm
- Injection vacuum gap ................................. 15 mm
- Beam heat load .......................................... 8 W
- Design temperature ................................... 4.2 K
- Magnetic length ......................................... 1.6 m
Bilfinger’s superconducting Insertion Devices for the US!

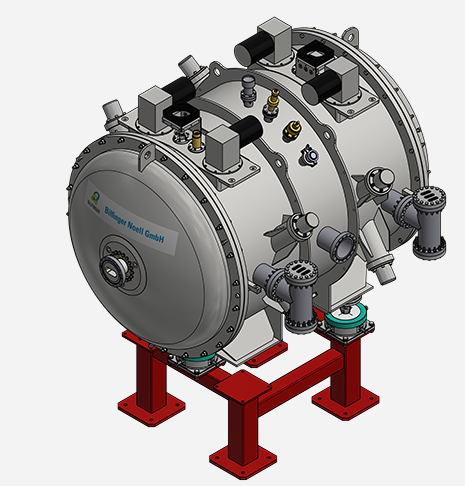

Bilfinger supplies a unique superconducting wiggler (SCW) to the renowned Brookhaven National Laboratory in the USA. The outstanding product is required for the HEX beamline of the highly optimized 3GeV storage ring of the NSLS-II synchrotron to provide high energy x-rays to the users.
Bilfinger is the supplier for cryogen free superconducting insertion devices. This technology enabling utmost brilliance enjoys the highest attention in the light source community.
